800.323.1604Length 40'
Width 8'6"
Height 13"1"
GVWR 88,000 lbs
Boom Reach 21' - 26'
Capacity 15 yd
Min HP 425 hp
Axle Configurations Tri Axle
Length 38'
Width 8'
Height 13'1"
GVWR 79,200 lbs
Boom Reach 18' - 23'
Capacity 12 yd
Min HP 425 hp
Axle Configurations Tandem, Pusher or Tri Axle
Length 37'
Width 8'6"
Height 13'4"
GVWR 99,500 lbs
Boom Reach 18' - 23'
Capacity 12 yd
Min HP 425 hp
Axle Configuration Tandem, (2) Pushers and Tag
Length 35'
Width 8'
Height 13'1"
GVWR 66,000 lbs
Boom Reach 15' - 20'
Capacity 9 yd
Min HP 425 hp
Axle Configurations Tandem, Pusher or Tri Axle

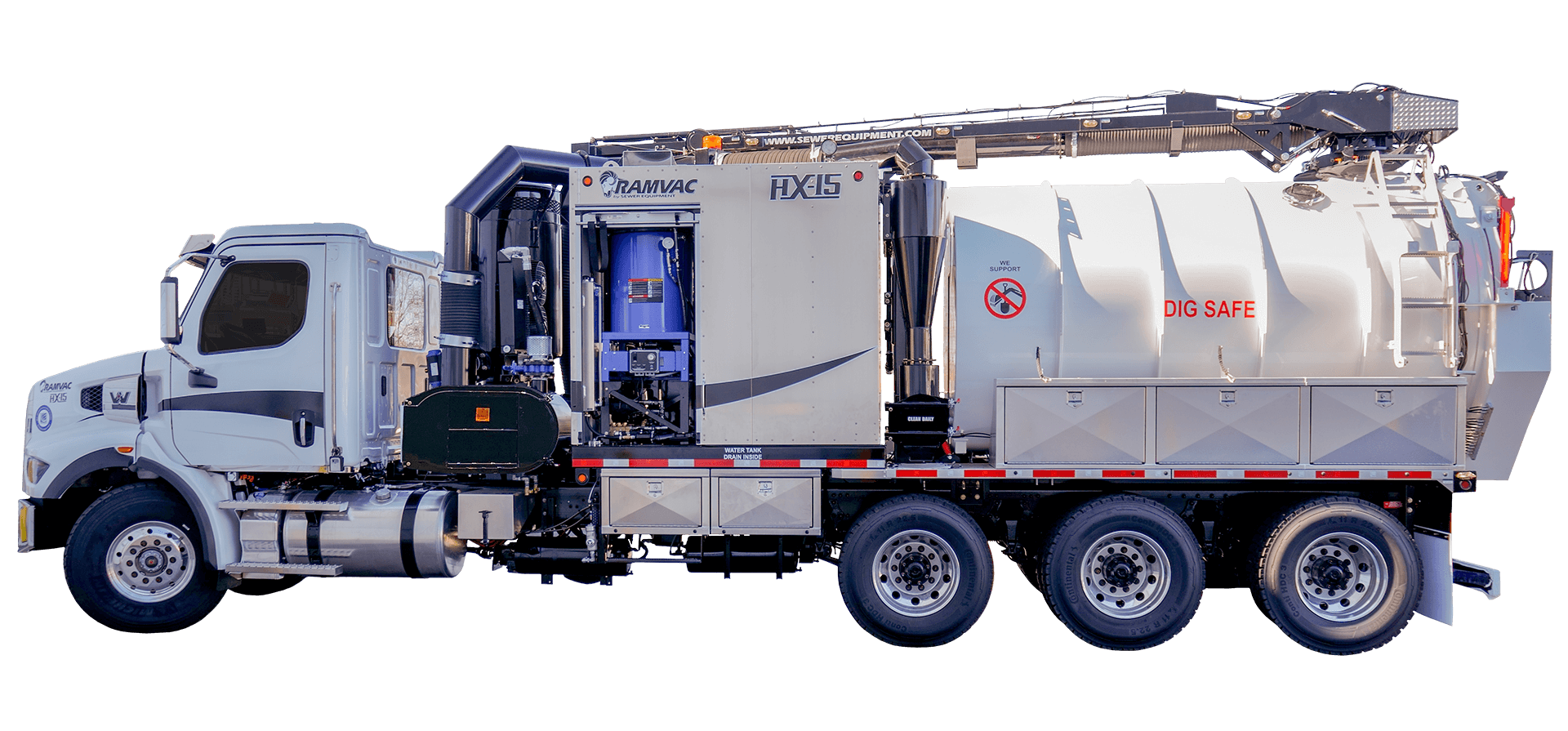

The RAMVAC HX-15 is the “Big Daddy” of the RAMVAC family, however, you do not have to compromise for that size either. We still feature a footprint 36” shorter and a payload capacity 2500 lbs greater than our competitors. This tridem axle configuration unit offers a 15-cubic-yard debris body, a boom reach of 21 to 26 feet with a 320° working radius. The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity, with the ability to do 5400 CFM and 28″ blower, well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, this hydro-vac truck features a 1,300-gallon water capacity, a 10 GPM @ 2500 PSI pump, 400,000 BTU water heater, all in an 80,000 BTU heated enclosure.
The HX-15 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems, and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit. All these features combined with a parts and service network that is available 24/7 makes it clear why RAMVAC is the best value for your equipment needs today!
To see the RAMVAC hydrovac machine in action, click here.
The mainstay of the RAMVAC family! We feature a footprint 36” shorter and a payload capacity 2500 lbs greater than our competitors. This tandem-axle configuration unit offers a 12-cubic-yard debris body, a boom reach of 18 to 23 feet with a 320° working radius. The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity, with the ability to do 5400 CFM and 28″ blower, well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, the HX-12 features a 1,300-gallon water capacity, a 10 GPM @ 2500 PSI pump and a 400,000 BTU water heater all in an 80,000 BTU heated enclosure.
The HX-12 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit. All these features combined with a parts and service network that is available 24/7 makes it clear why RAMVAC is the best value for your equipment needs today! To see the RAMVAC in action, click here.
VIEW RAMVAC HX-12 HYDRO EXCAVATOR 360 Product View
VIEW RAMVAC HYDRO EXCAVATION TRUCK BROCHURE
A variation on the HX-12, the mainstay of the RAMVAC family, the quint axle offers the benefits of the HX-12 but with two additional axles. More axles means a greater payload capacity. Yes, the HX-12 already has a larger payload capacity than our competitors, but with a quint axle, the payload is the largest legal payload in the industry at over 27,000 pounds. The greater weight distribution also helps comply with federal bridge laws.
This tandem-axle configuration unit offers a 12-cubic-yard debris body, a boom reach of 18 to 23 feet with a 320° working radius. The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity, with the ability to do 5400 CFM and 28″ blower, well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, the HX-12 features a 1,300-gallon water capacity, a 10 GPM @ 2500 PSI pump and a 400,000 BTU water heater all in an 80,000 BTU heated enclosure.
The HX-12 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit. All these features combined with a parts and service network that is available 24/7 makes it clear why RAMVAC is the best value for your equipment needs today! To see the RAMVAC in action, click here.
VIEW RAMVAC HX-12 HYDRO EXCAVATOR 360 Product View
VIEW RAMVAC HYDRO EXCAVATION TRUCK BROCHURE
The smallest unit in the RAMVAC family of full-size hydro excavators, these units are equipped with large productivity features. This tandem axle configuration unit offers a 12-cubic-yard debris body, a boom reach of 15 to 20 feet with a 320° working radius. The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity, with the ability to do 5400 CFM and 28″ blower, well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, the HX-9 features a 1,300-gallon water capacity, a 10 GPM @ 2500 PSI pump and a 400,000 BTU water heater all in an 80,000 BTU heated enclosure.
The HX-9 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems, and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit. All these features combined with a parts and service network that is available 24/7 makes it clear why RAMVAC is the best value for your equipment needs today! To see the RAMVAC in action, click here.
